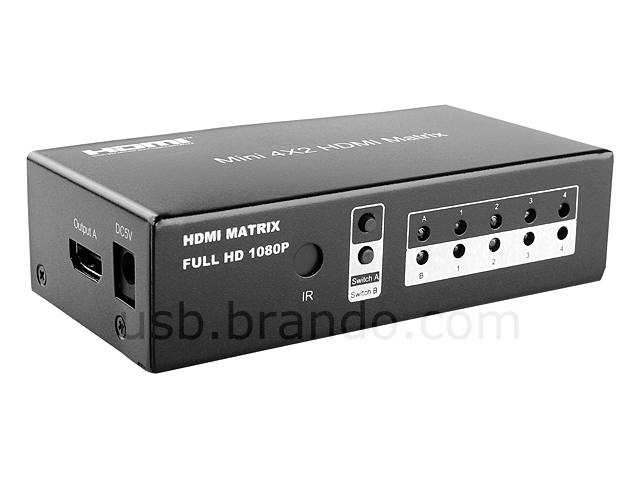

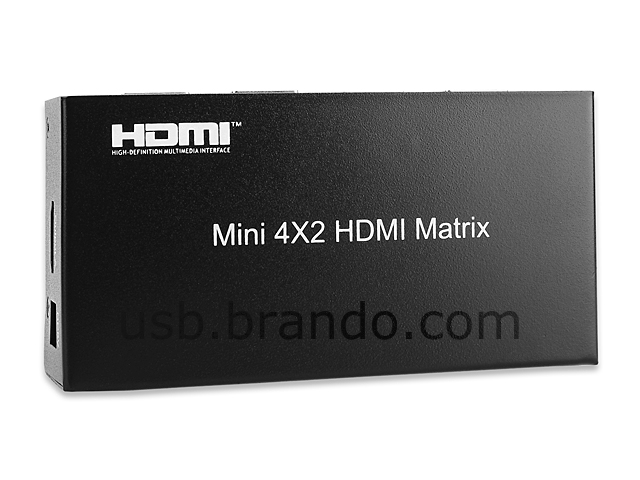

HDMI > HDMI Switch Matrix (4 in 2 out)
Features:
- HDMI 1.3, HDCP 2.0 compliant

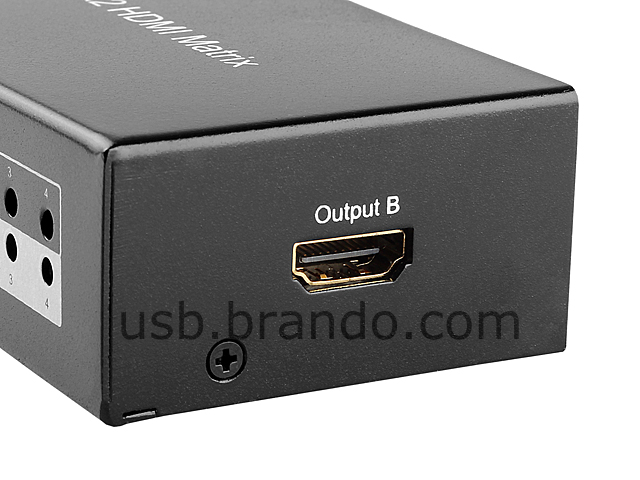

- 4 x HDMI inputs, 2 x HDMI standard outputs
- Support 30/36-bit color depth display
- High Definition Audio Supported: Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM
- 2 x HDMI output ports can be from the same or different sources
- Manual or remote select source input signal to different sink
- Auto Signal Enhancement feature can improve signal quality after long distance transmission
- High-definition Resolution Supported: HDTV - up to 1080p
- Dimension: 118 x 62 x 32mm (approx.)
- Weight: 254g
Specifications:
- Data Transfer Speed Rate: 6.75Gbps (Max.)
- Video Format Supported: DTV / HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, 1080P
- HDMI Output: HDMI 1.3 + HDCP 2.0
- Support Video Color Format: xv-YCC / deep color 36-bit
- Support Audio Format: DTS-HD / ture-HD / LPCM 7.1 / AC3 / DTS / DSD
- Transmission Distance: 15M (Max.) over standard HDMI cable / 26AWG
Package Contents:
- HDMI Switch Matrix (4 in 2 out)

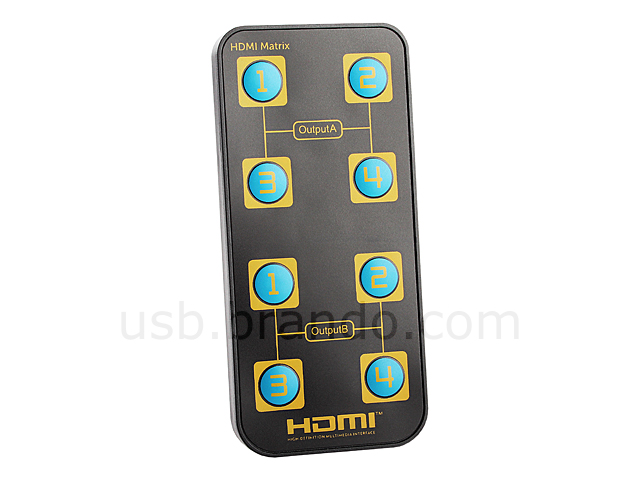

- Remote Control
- AC Adapter (100~240V, 50/60Hz 0.4A, 5V/2A)
- User's Manual
|
|
|
