PC Stuff > GIGABYTE™ GA-GC230D(Atom) (MINI-ITX)
Features:
- Supports 45nm Intel® Atom 230 Processor
- Integrated Intel Graphics Media Accelerator 950 (Intel GMA 950)

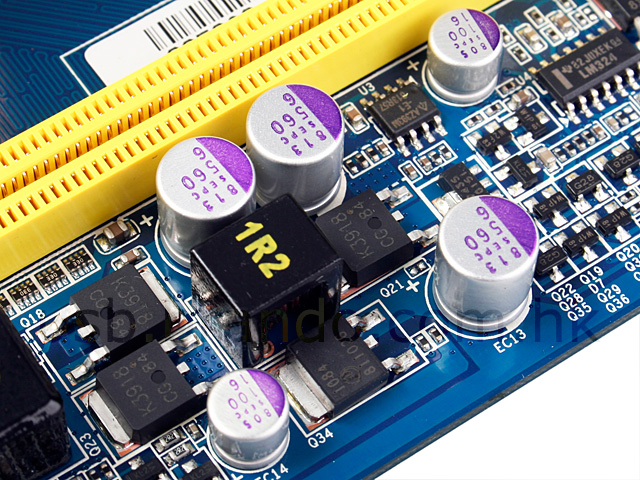

- All solid capacitors design
- Integrated High Definition audio
- High speed 10/100 LAN connectivity
- Integrated SATA 3Gb/s interface
- Mini size for flexible use
Hardware Specifications:
- Brand: GIGABYTE
- Model: GA-GC230D(Atom)
CPU:
- Built in with an Intel® Atom™ 230 CPU (1.6GHz)
- 512K L2 cache
Front Side Bus:
Chipset:
- North Bridge: Intel® 945GC Express Chipset
- South Bridge: Intel® ICH7
Memory:
- 1 x 1.8V DDR2 DIMM socket supporting up to 2 GB of system memory
- Support for DDR2 533/400 MHz memory module
(Go to GIGABYTE's website for the latest memory support list.)
Onboard Graphics:
- Integrated in the North Bridge
Audio:
- Realtek ALC662 codec
- High Definition Audio
- 2/4/5.1-channel
LAN:
- Realtek 8101E chip (10/100 Mbit)
Expansion Slots:
Storage Interface:
South Bridge:
- 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
- 2 x SATA 3Gb/s connectors supporting up to 2 SATA 3Gb/s devices
USB:
- Integrated in the South Bridge
- Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Internal I/O Connectors:
- 1 x 20-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 1 x IDE connector
- 2 x SATA 3Gb/s connectors
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 2 x USB 2.0/1.1 headers
- 1 x chassis intrusion header
- 1 x power LED header

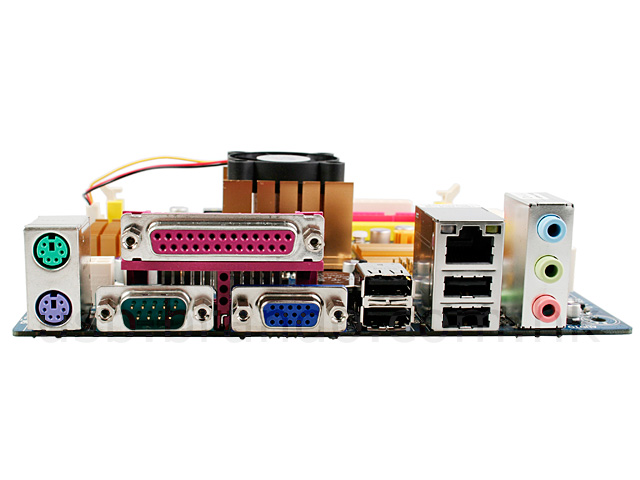

Back Panel Connectors:
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x parallel port
- 1 x serial port
- 1 x D-Sub port
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller:
H/W Monitoring:
- System voltage detection
- CPU temperature detection
- CPU/North Bridge/System fan speed detection
- CPU fan speed control
BIOS:
- 1 x 4 Mbit flash
- Use of licensed AWARD BIOS
- PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features:
- Support for BIOS
- Support for Download Center
- Support for Q-Flash
- Support for EasyTune
- Support for Xpress Install
- Support for Xpress Recovery2
- Support for Virtual Dual BIOS
Bundle Software:
- Norton Internet Security (OEM version)
Operating System:
- Support for Microsoft® Windows® XP
Form Factor:
- Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark:
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.

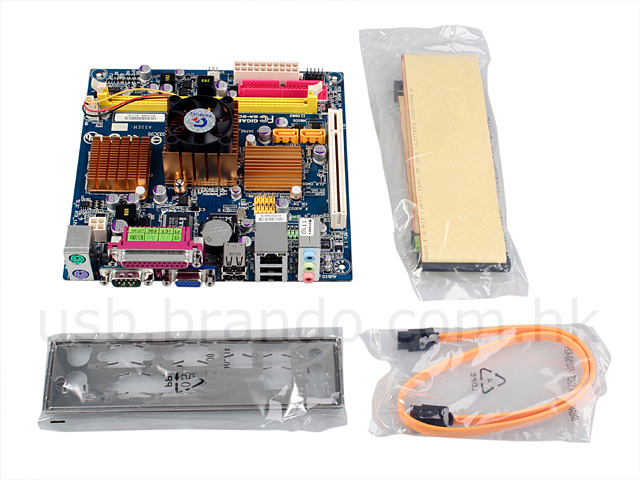

Package Contents:
- 1 x GIGABYTE™ GA-GC230D (Atom) (rev. 1.0) Mainbroad
- 1 x IDE Cable
- 1 x SATA Cables w/Clips
- 1 x Rear I/O Panel
- 1 x User's Manual
- 1 x CD Driver
|
|
|
