QNAP TS-109 Pro All-in-one NAS Server
QNAP TS-109 Pro All-in-one NAS Server
Product Code: UPCSF001200
Network Storage is a must in modern working environment. To enhance the work efficiency, it becomes increasingly essential for offices to establish a network storage system for centralized file sharing, network printing, FTP upload/download, BT download ( Bittorrent ), and data backup etc.. However, most small business and SOHO users are often helpless when facing the challenges of setting up a network storage system.

QNAP TS-109 Pro Turbo Station is an ultra-high-speed All-in-one NAS (Network Attached Storage) server designed for SMB/SOHO and professional users. With the easy installation, friendly web-based interface, and complete server feature sets, small office users can easily set up a network system for all sorts of storage applications without MIS help.

TS-109 Pro supports many valuable functions like File Server, FTP Server, Printer Server, etc. to satisfy the needs of SMB and SOHO users. Meanwhile, Windows ADS (Active Directory Service) is supported to help create an easy to-access environment and lower the maintenance cost by centralized management. With the dual support of MySQL and SQLite, SMB/ SOHO users can easily set up their own web and database server. Moreover, the editable php.ini support enables higher flexibility in creating web pages. TS-109 Pro provides the most complete backup solution for secure data protection: Remote Replication, Auto-Sync/ Instant/ Schedule backup by professional NetBak Replicator, and unique Q-RAID 1 mirroring for real-time data protection.

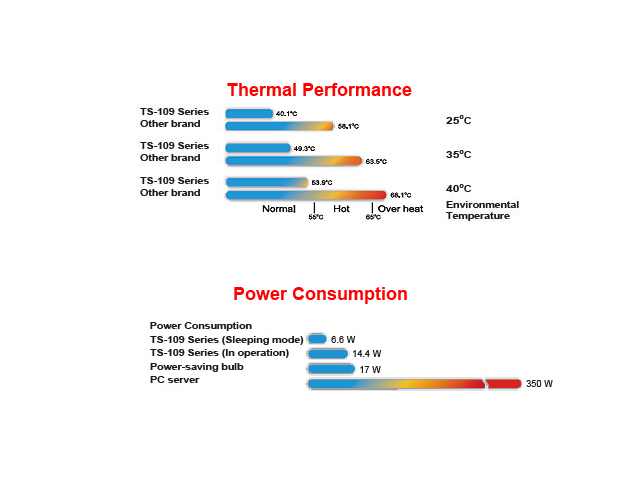

QNAP TS-109 Pro Turbo Station supports large capacity SATA disk of up to 1 TB and is extendable to 2TB by ultra-fast eSATA and USB 2.0 port. With its noise-free design and outstanding heat dissipation technology, TS-109 Pro can run 24x7 silently at low power consumption of only 14.4W. It is ideal choice for small business looking for a quiet and power-saving storage application.

This item is Discontinued
QNAP TS-109 Pro All-in-one NAS Server QNAP TS-109 Pro All-in-one NAS Server QNAP TS-109 Pro All-in-one NAS Server QNAP TS-109 Pro All-in-one NAS Server
Features:
  • Brand: QNAP
  • Model: TS-109 PRO
  • Port / Connector: 1 x Gigabit RJ-45 Ethernet port, 3 x USB 2.0, support USB printer, 1 x eSATA port
  • Supported Protocols: Networking: TCP/IP, DHCP Client, DHCP Server, CIFS/SMB, AFP, NFS, HTTP, HTTPS, FTP, DDNS, NTP, Jumbo Frame
  • Operating System: Linux embedded system
  • Processor: High-speed SoC
  • Capacity: Diskless System
  • Default/ Max.Memory: 128MB DDR II RAM, 8MB Flash
  • LEDs: USB, Status, eSATA, HDD, LAN, Power
  • Power Power Supply: External power adapter, 12V, 36W, 100~240V
  • Power Consumption: Sleep mode 6.6W, In operation 14.4W
  • Dimensions 8.3" x 7.2" x 2.3"
  • Weight 2.6 lbs.
  • Temperature 0~35°C
  • Humidity 0~85% R.H
  • HDD Capacity: 1 x 3.5" SATA I/II HDD, up to 1TB, expandable to 2TB via eSATA/USB (the HDD is not included)
  • USB: Support USB printer, disk, digital camera, pen drive, card reader, USB hub
  • Alarm Buzzer: System warning
  • Energy-saving Design: Fanless, HDD sleep mode; Low power consumption & noise-free
  • Thermal Solution: Heat dissipation by aluminum case
  • Secure Design: K-Lock security slot for theft prevention; Power cord hook for kicking-off prevention

Software Specification:
  • File server: Share files across Windows/ Mac/ Linux/ Unix and centralized management
  • FTP server: Access file from remote location via FTP server; Supports up to 32 concurrent connections
  • Backup server: Client-side backup software-NetBak Replicator supports instant, schedule and real time backup
  • Mirror station: Protect data by Q-RAID 1 technology
  • Print server: Network printer sharing via USB (Support Windows platform only)
  • Disaster Recovery: Block level remote replication supports instant, schedule, with synchronization mode remote backup management
  • Web Server: Establish users' own web page and interactive websites with PHP; SQLite and MySQL dual support
  • MySQL Server: Support MySQL database server
  • iTunes Server: Act as an iTunes server on your network, and you can play all your music files by iTunes software on your PC/ NB.

UPnP MediaServer:
  • Support UPnP/ DLNA multimedia technology; Share stored photos and home videos on TV, listen to music on Hi-Fi system via DMP
  • Enjoy more than hundreds of worldwide Internet radio (TwonkyMedia)

Multimedia Station:
  • Image Slide show, Rotate (+90°)
  • Showing photo's details: dates, exposure time, aperture, etc.
  • Auto generating thumbnails for easy browsing
  • Album Management
  • Multimedia (video, audio) file local play
  • Automatic file categorization

Management Disk Management:
  • User quota management (Per user)
  • Disk usage status
  • Check disk (Check Linux file system)
  • Bad blocks scan

User Management:
  • Windows AD service support
  • User account management (max 256 users)
  • User group management (max 128 groups)

File System Management:
  • Network share management (max 256 Shares)
  • Share folder level ACL support
  • Unicode support
  • Journaling file system
  • Unique web file manager

Supported Clients:
  • Microsoft Windows 98/ME/NT/ 2000/XP/2003/Vista, Mac OS9/OSX & Linux and Unix

Package Contents
  • TS-109 Pro
  • Resource Disk
  • Harddrive does not include
