Features:
- ISM 2.4GHz IEEE 802.11b/g
- DSSS / OFDM technology
- Global transmission distance furthest Wi-Fi wireless card
- 11/54 wireless local area network (software adjustable)
- The actual rate up to 22Mbps over
- NIC receive mode over distances up to 3,000 meters (depending on environment)
- Output power of 50mW to 1000mW (automatic adjustment)
- WEB simplify the use of web-based management
- Wide operating temperature from 0 to 55°C
- Supported 802.1x Authentication System
- Supporting wpa-psk, wpa2-psk, wpa 802.1x, wp2 802.1x, wep 64/128 bit
- Support Window 7 / Vista / XP
- Dimension: 134 x 134 x 180mm
- Wight: 381g
Specifications:
- Chipset: Realtek 8187L (RTL8187L) - BT3 and BT4 compatible
- Standards: Wireless IEEE 802.11b/g, USB 2.0 Standard
- Date Rate: 802.11b: 11Mbps
Date Rate: 802.11g: 54Mbps
- Data Modulation Type: IEEE 802.11b: (DSSS), 5.5/11Mbps (CCK), 2Mbps (DQPSK),
Data Modulation Type: IEEE 802.11b: 1Mbps (DBPSK)
Data Modulation Type: IEEE 802.11g: (OFDM), 48/54Mbps (64-QAM), 24/36Mbps (16-QAM),
Data Modulation Type: IEEE 802.11g: 12/18Mbps (QPSK), 6/9Mbps (BPSK)
- Output Power: 24dbm (OFDM), 32dbm (CCK)
- Frequency Range: 2.4GHz (ISM Band)
- Security: 64/128-bit WEP encryption, WPA, WPA2
Package Contents:

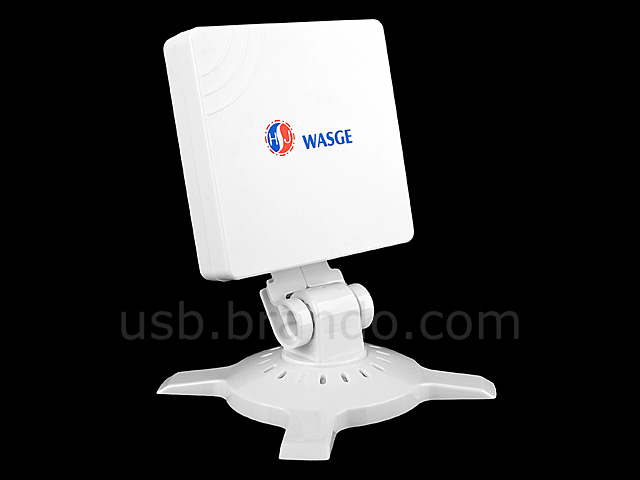

- WASGE 2.4G Wireless 16dBi USB Adapter

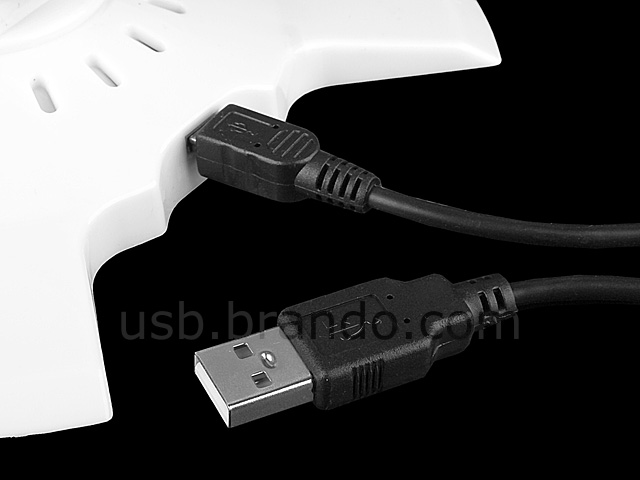

- USB Power Cable
- CD Driver
|
|
|
